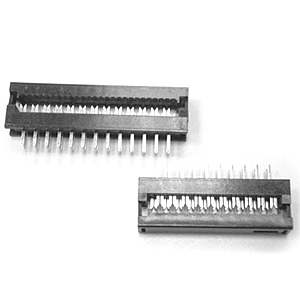

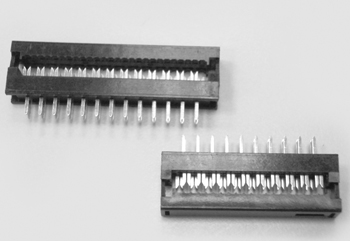

5012 SERIES
2.54 / 2.00 / 1.27MM PITCH IDC PLUG
Description
MATERIAL:
INSULATOR : PBT + 30% GLASS FIBER (UL94V-0).
CONTACT : BRASS.
ELECTRICAL CHARACTERISTICS:
CURRENT RATING : 3 AMPS.
WITHSTANDING VOLTAGE : AC 500V R.M.S.
INSULATOR RESISTANCE : 5000 MEGOHMS MIN.
CONTACT RESISTANCE : 20 MILLIOHMS MAXIMUM.
OPERATING TEMPERATURE : -40°C ~ +105°C
INSULATOR : PBT + 30% GLASS FIBER (UL94V-0).
CONTACT : BRASS.
ELECTRICAL CHARACTERISTICS:
CURRENT RATING : 3 AMPS.
WITHSTANDING VOLTAGE : AC 500V R.M.S.
INSULATOR RESISTANCE : 5000 MEGOHMS MIN.
CONTACT RESISTANCE : 20 MILLIOHMS MAXIMUM.
OPERATING TEMPERATURE : -40°C ~ +105°C
